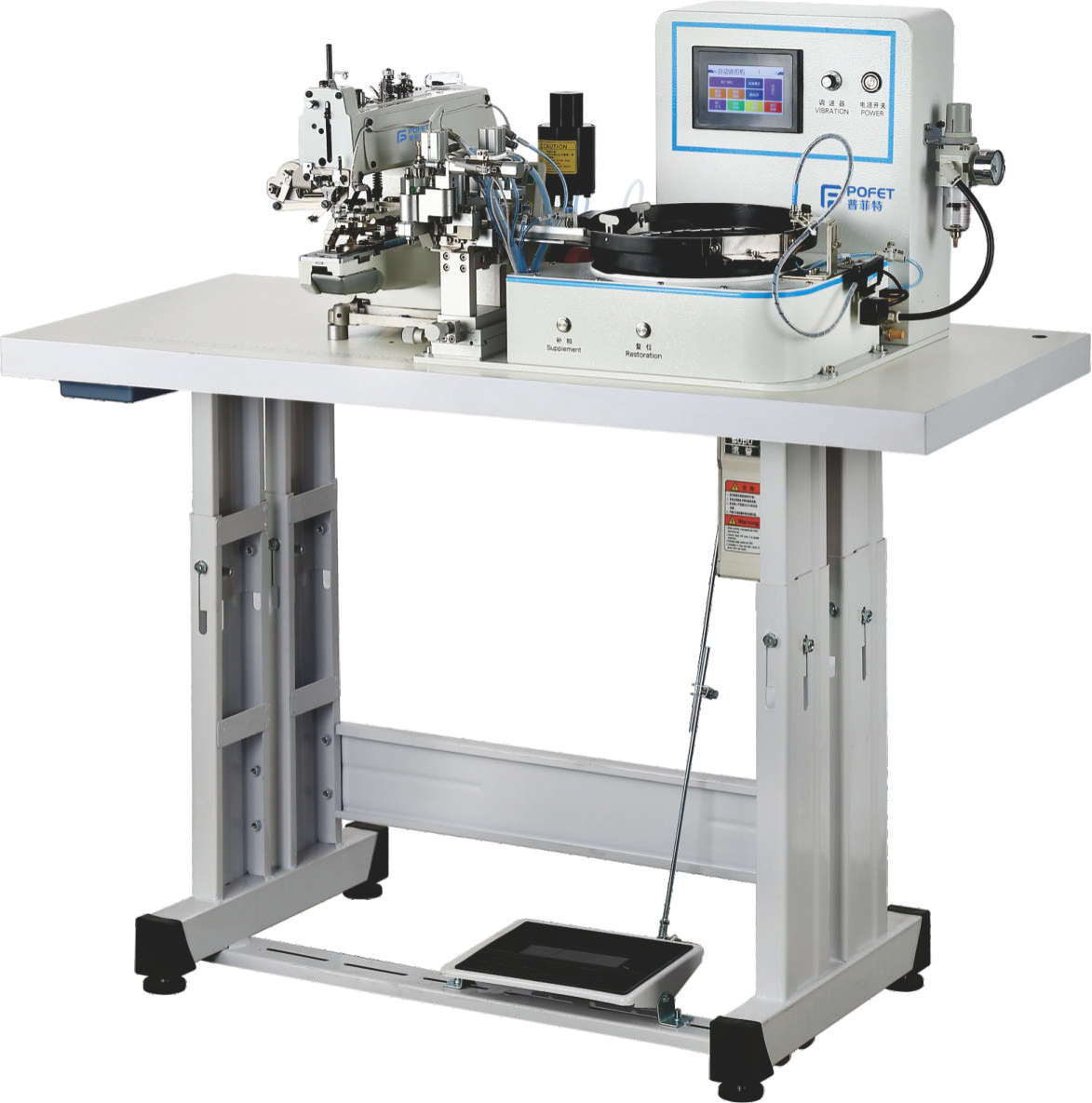

自动送扣机

PFT-968-373

Product advantages

可选配颜色识别装置Optional color-recognition device available.

可选配微调功能Optional micro-adjustment function available.

未命名 -1.png

1、钉扣机配此装置效率高，是人工机械式钉扣机的3倍以上，全自动送扣系统可以选定正反面(非标可定做)，每次送扣时间为0.5秒，每分钟送扣120次左右，输钮系统方便简单，一键搞定

2、纽扣适用范围8mm-28mm,四孔位，两孔位

3、此送扣装置可通配1903系列，438系列，373系列，1377系列，4-2系列等机型，适用性能强

1.Button machine with this device is high efficiency, is the artificial machinery ofthe deduction machine more than 3 times, Automatic delivery system can choosepositive and negative(non-standard can be customized), each time to sendDeduction time of 0.5 seconds, about 120 times per minute to send buck, thebutton system easy to Jane Single, a key to get

2.Button applicable range 6mm-28mm, four holes, two holes

3.This button can be equipped with 1903 series,438 series, 373 series, 1377series, 4-2 series Columns and other models, the application of strongperformance

Specifications

型号Model	PFT-968	PFT-968-1903	PFT-968-438	PFT-968-373	PFT-968-1377
配置Setup	单配置Setup	1903D	438D	373D	1377D
机针Needle（DP*17)		TQ*1-14	TQ*1-14	TQ*1-14	TQ*1-14
额定钉扣速度（PCS/min）	40-50	40-50	40-50	40-50	40-50
连续钉扣速度（PCS/min）	60-65	60-65	60-65	60-65	60-65
最高转速Maximum Speed S.P.M		2600pm	2600pm	1500pm	1500pm
压脚高度Presser Foot Height mm		12	13	13
纽扣直径Button Diameter mm	6-28	6-28	6-28	6-28	6-28
纽扣厚度Button Thickness mm	1-5	1-5	1-5	1-5	1-5
气压Air Pressure MPR	0.25-0.30	0.25-0.30	0.25-0.30	0.25-0.30	0.25-0.30
电压Voltage	VAC110/220V±10%: 50/60Hz	VAC110/220V±10%: 50/60Hz	VAC110/220V±10%: 50/60Hz	VAC110/220V±10%: 50/60Hz	VAC110/220V±10%: 50/60Hz
额定功率Rated Power W	65	600+65	600+65	600+65	600+65
包装尺寸Package Dimensions（mm）	580x550x460	1250x750x1220	1250x750x1220	1250x750x1220	1250x750x1220
重量Weight	32kg	132kg	132kg	112kg	112kg
