1、采用触摸屏操作系统，软件更稳定，页面更直观

2、采用两种送扣模式：大小扣模式和大扣快速模式、跟据需要自由转换，常规送扣：从输扣槽直接送到扣夹座。进入送扣参数：打开“大扣快速”，纽扣预送至送扣机与钉扣机，中间待机(待机位置可设置)，比常规送扣速度快

3、机臂纽扣扣柄长短调节：根据纽扣柄长短，通过调节螺丝根据实际要求快速调节,调节方便快捷

4、扣夹压扣：采用气缸压扣模式，纽扣不跑偏，夹扣更稳固

5、输扣槽：独特设计简洁高效的输扣槽采用底部、上部吹气，不卡扣送扣更顺畅。定时返吹装置：使纽扣不会堵在输扣槽进口处

6、伺服电机：采用大功率伺服电机送扣，送扣速度快、震动小音低，送扣效率更高

7、纽扣适用范围8mm-28mm,四孔位，两孔位

8、此送扣装置可通配1903系列，438系列，373系列，4-2系列等各种机型

适用性能强

该设备可搭配重机、兄弟款等各种品牌、型号的钉扣机，还可以搭配服装厂现有在使用的钉扣机上，大大节省了重新购买新钉扣机的费用

1.It adopts a touchscreen operating system, featuring more stable software and a more intuitive interface

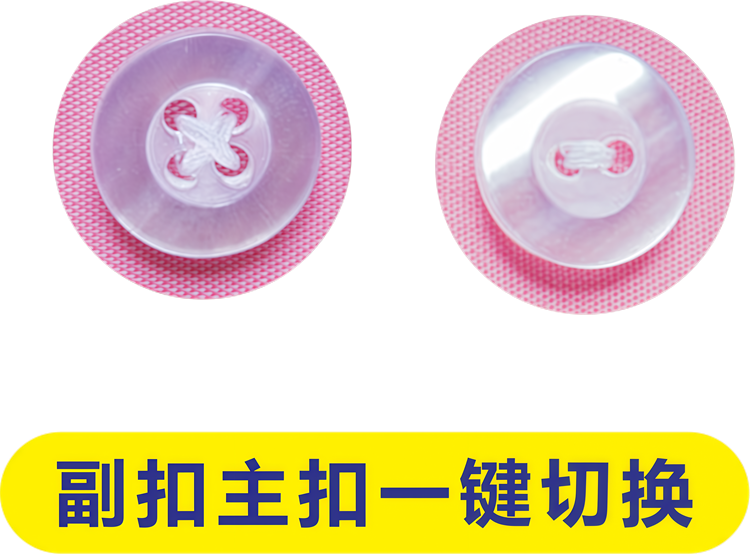

2.It adopts two button feeding modes: Small & Large Button Mode and Large Button Fast Mode, which can be freely switched according to needs.

• Regular button feeding: Buttons are directly fed from the button feeding slot to the button clamp holder.
• Accessing button feeding parameters: Enable the "Large Button Fast" function. Buttons are pre-fed to the button feeder and button attaching machine, then stay in standby in the middle (the standby position is configurable). This mode is faster than regular button feeding.

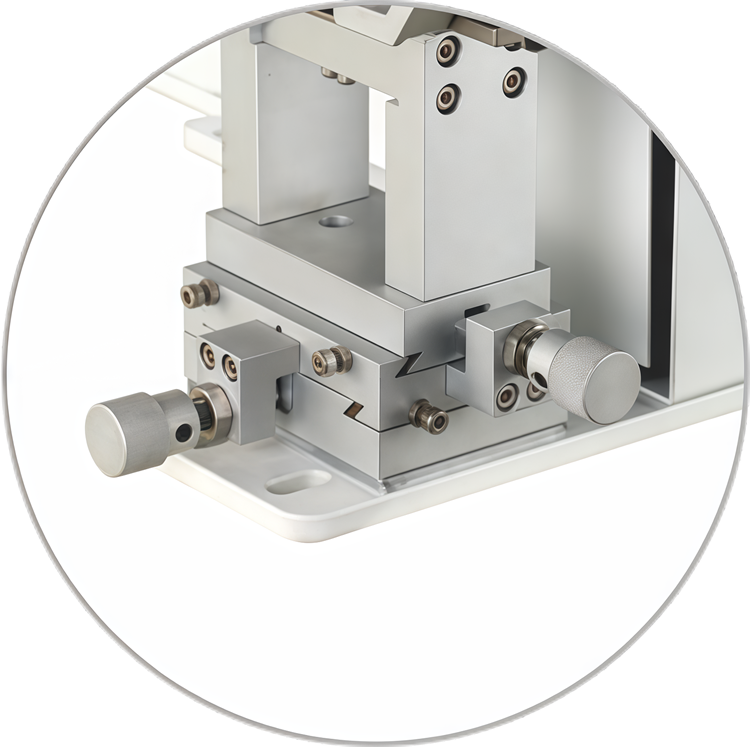

3.Length Adjustment of Button Shank on Robot Arm: According to the length of the button shank, quick adjustment can be made via adjusting screws as per actual requirements, featuring convenient and fast operation.

4.Button Clip Pressing: Adopting the cylinder pressing mode, it prevents button deviation and ensures more stable clamping

5.Feed Chute: Uniquely designed for simplicity and high efficiency, the feed chute blows air from both the bottom and the top to prevent jamming and ensure smooth button feeding.Timed reverse-blow device: keeps buttons from blocking the inlet of the feed chute.

6.Servo Motor: A high-power servo motor drives the button feeding, delivering faster speed, lower vibration and quieter operation for significantly higher feeding efficiency.

7.Button size range: 8 mm – 28 mm, suitable for both 2-hole and 4-hole buttons.

8.This button-feeding unit is universally compatible with 1903, 438, 373, 4-2 and other series machines.

Wide applicability

The unit can be paired with Juki, Brother and other brands and models of button-sewing machines, as well as with the machines already in use in garment factories, eliminating the need to purchase new equipment and saving considerable expense.
